Pneumatic
Systems
Built for abrasive flow environments, our components reduce wear, limit downtime, and lower your total cost.
With over 40 years of experience in industrial fabrication, Allied Welding Systems has become a trusted provider of high-performance pneumatic components. We combine field-tested materials with cutting-edge fabrication to create longer-lasting, high-efficiency pneumatic solutions.

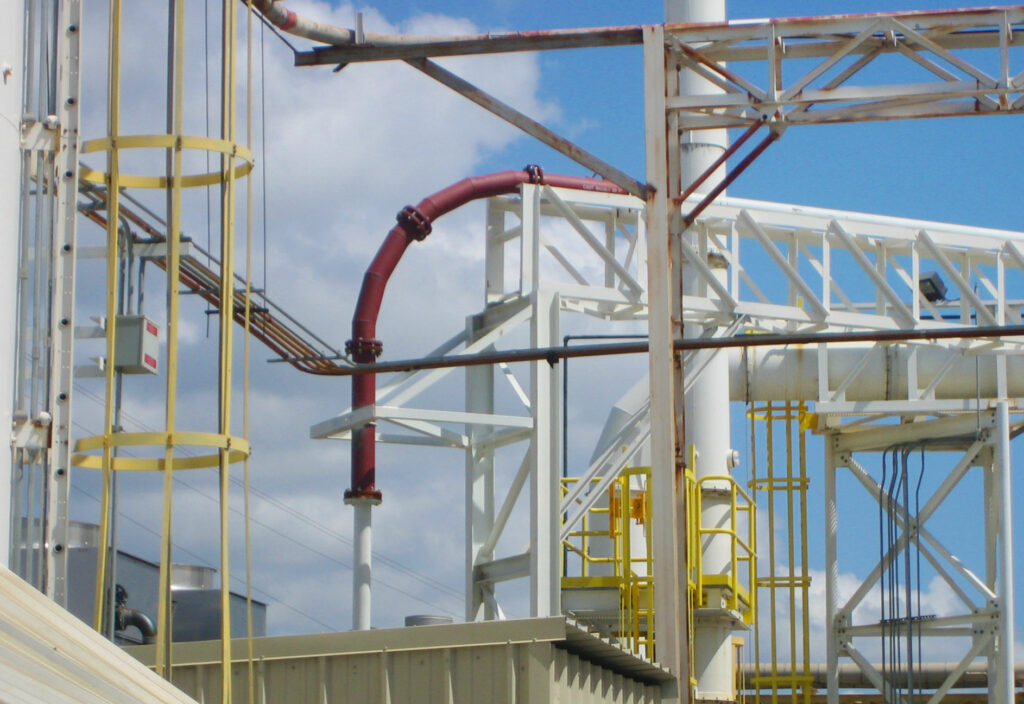

Innovative Smoothbend Elbows — Custom-fabricated elbows that eliminate deflection points, reduce wear, and dramatically increase lifespan over segmented designs
Allied 96% High-Density Alumina Ceramic — Engineered for extreme abrasion environments, with hardness second only to diamond.
Allied High-Density Silicon Carbide — Ideal for high-velocity, high-temperature, or chemical applications requiring maximum wear resistance.
Bends in pneumatic conveying systems generally fall into three categories: standard-radius bends, standard fittings like tees and mitered bends, specialized bends engineered for demanding applications. Among these, our lined bends offer enhanced wear resistance and durability in high-impact, high-abrasion flow environments.
Our team designs and fabricates custom components in a variety of configurations—such as “T”, “Y”, and “S” shapes—available in custom sizes and lengths based on project specifications.
Allied Advantages
Extreme Wear Resistance — Lasts 4–5 times longer than standard steel under the same conditions, minimizing frequent replacement cycles.
Chemical Corrosion Resistance — Ceramic linings stand up to harsh acids and alkalis without degradation.
High Temperature Stability — Operates reliably at up to 150°C — ideal for most industrial environments.
Smooth, Uninterrupted Flow — Highly polished interior surfaces prevent buildup and material hang-ups, keeping flow fast and consistent.
Reduced Maintenance & Downtime — Superior abrasion resistance means fewer shutdowns, lower labor costs, and longer service life.
We support a wide range of pneumatic system types — reach out to see how we can help with your specific application.
Batch Systems
Granular & Sand
fiberglass
dust collection
dry bulk
fly ash recovery
Have questions or need a solution? Reach out to us today for expert advice tailored to your needs!
Allied Welding Systems in Dallas, TX is a leading provider of high-quality engineering components tailored to meet your unique mining and industrial needs. We fabricate top-grade engineered wear solutions at market-leading prices.
